Parameter 參數 |
Value 價值 |
|
Size 大小 |
32cm L x 12cm W x 10 cm H |
|
Weight 重量 |
typically <4 kg |
|
F/number F/ 號碼 |
F/3 |
|
Spectral range (free of second order effects) 光譜范圍（無二階效應） |
90-95% of an octave in the 350 nm to 2500 nm range |
|
Spot diameter 直徑 |
19 µm @ 1000 nm in 25.4 x 9 mm2 area |
|
Spectral resolution (0.024 mm wide pixels)光譜分辨率（0.024毫米寬像素） |
0.5 nm @ 400 nm and 2 nm @ 2000 nm |
|
Linear dispersion 線性色散 |
90%-95% of an octave per inch |
|
Maximum detector size 最大規模探測器 |
25.4 x 12.7 mm |
|

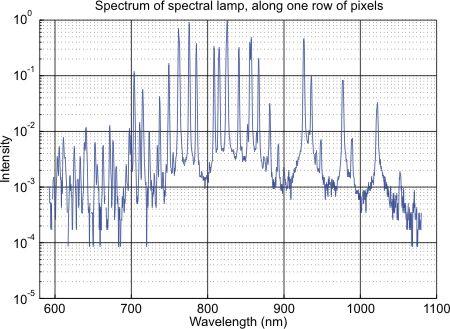

Dynamic range of a single 0.024 by 0.024 mm2 pixel 動態范圍由單一的0.024到0.024毫米2像素 |
> 3,000 |
|

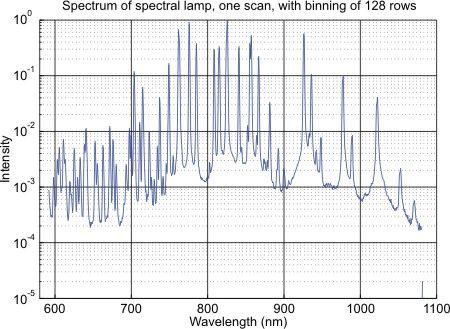

Dynamic range, binning along 2 mm slit 動態范圍，包括2毫米狹縫 |
> 55,000 (detector dependent) |
|

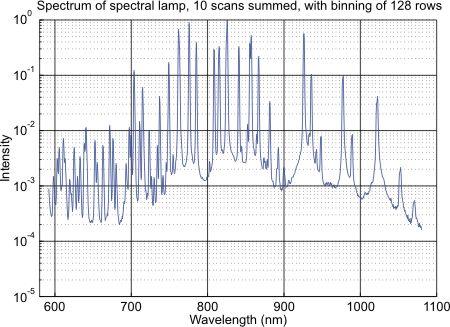

Dynamic range, binning along 8 mm slit 動態范圍，包括8毫米狹縫 |
> 300,000 (up to 1,000,000 with averaging over a number of measurements) |
